Our Products

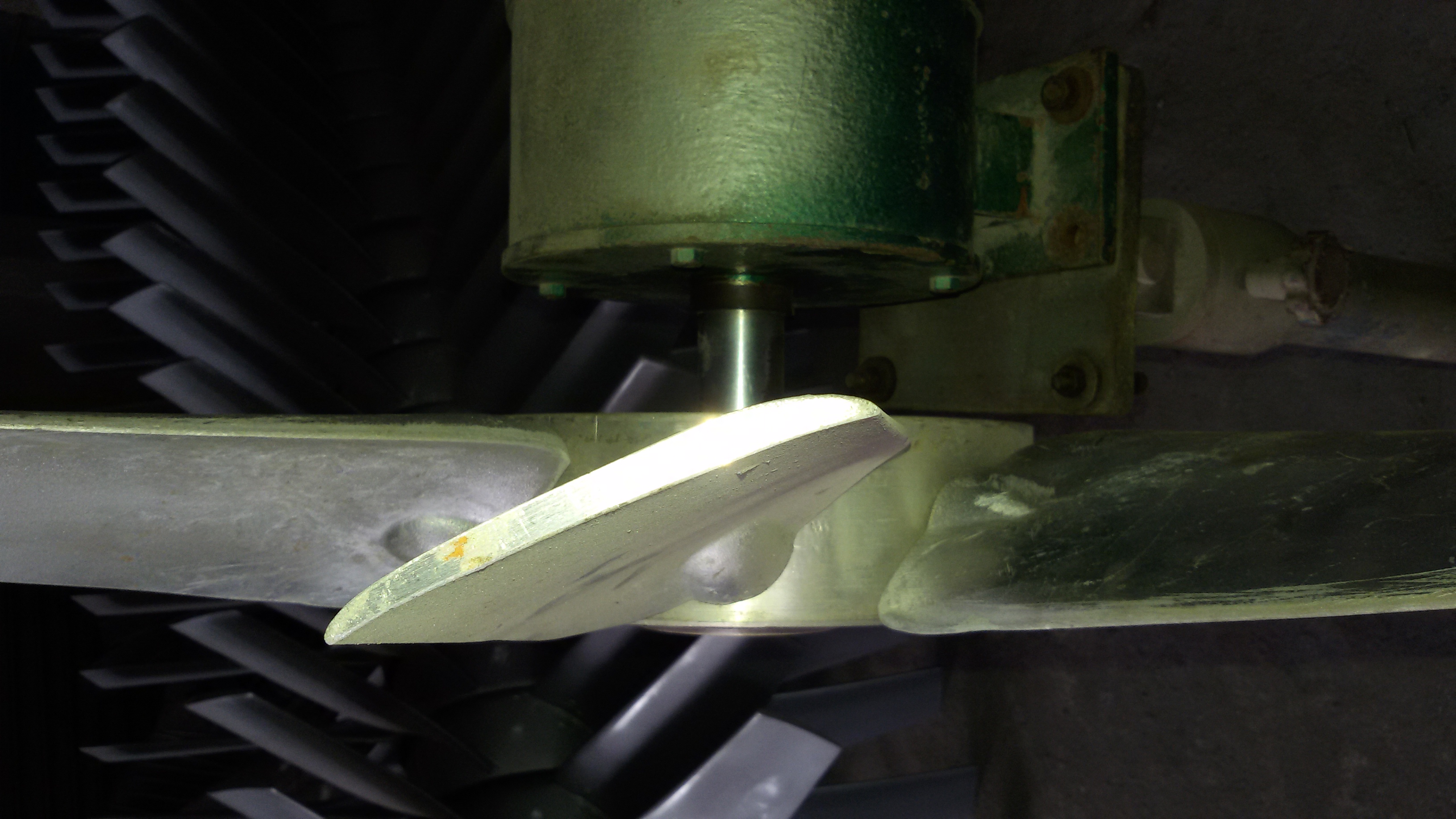

Axial flow Fan blade/ Impeller are special used in Tea Industries. Impeller made by Aluminum Cast alloy with Machining, Balancing and Painting complete.
SWEET/ MM |
H.P |
WEIGHT |
R.P.M |
C.F.M |
|
36" |
915 |
3.0 |
14.0 kg |
960 |
16500 |
40" |
1000 |
3.0 |
14.5kg |
960 |
19000 |
42" |
1065 |
3.0 |
15.0kg |
960 |
22000 |
44" |
1115 |
4.0 |
15.0kg |
960 |
25000 |
48" |
1220 |
3.0 |
15.5kg |
960 |
27000 |
48" |
1220 |
5.0 |
22.0kg |
960 |
37000 |
49¼” |
1250 |
5.0 |
28.0kg |
960 |
39000 |
49¼" |
1250 |
7.5 |
28.0kg |
960 |
42000 |
54" |
1370 |
7.5 |
30.0kg |
960 |
44000 |
56" |
1420 |
7.5 |
31.0kg |
960 |
45000 |
We are supply of deferent type Fixed piece Mancooler Impeller i.e 19"to 48".
Impellers are made by Aluminum Cast Allay with Machining, Balancing and Painting complete.
Sweep |
Speed |
Power |
Total Blade Sweep |
|
Inch |
Mm |
R.P.M. |
HP |
C.F.M. |
19 |
482 |
1440 |
0.5 |
6500 |
19 |
482 |
2900 |
3.0 |
11000 |
24 |
610 |
1440 |
1.0 |
16500 |
30 |
760 |
1440 |
2.0 |
18500 |
36 |
915 |
960 |
2.0 |
32000 |
36 |
915 |
1440 |
3.0 |
37000 |
40 |
1010 |
1440 |
3.0 |
40000 |
48 |
1220 |
960 |
5.0 |
38000 |
48 |
1220 |
1440 |
5.0 |
43000 |

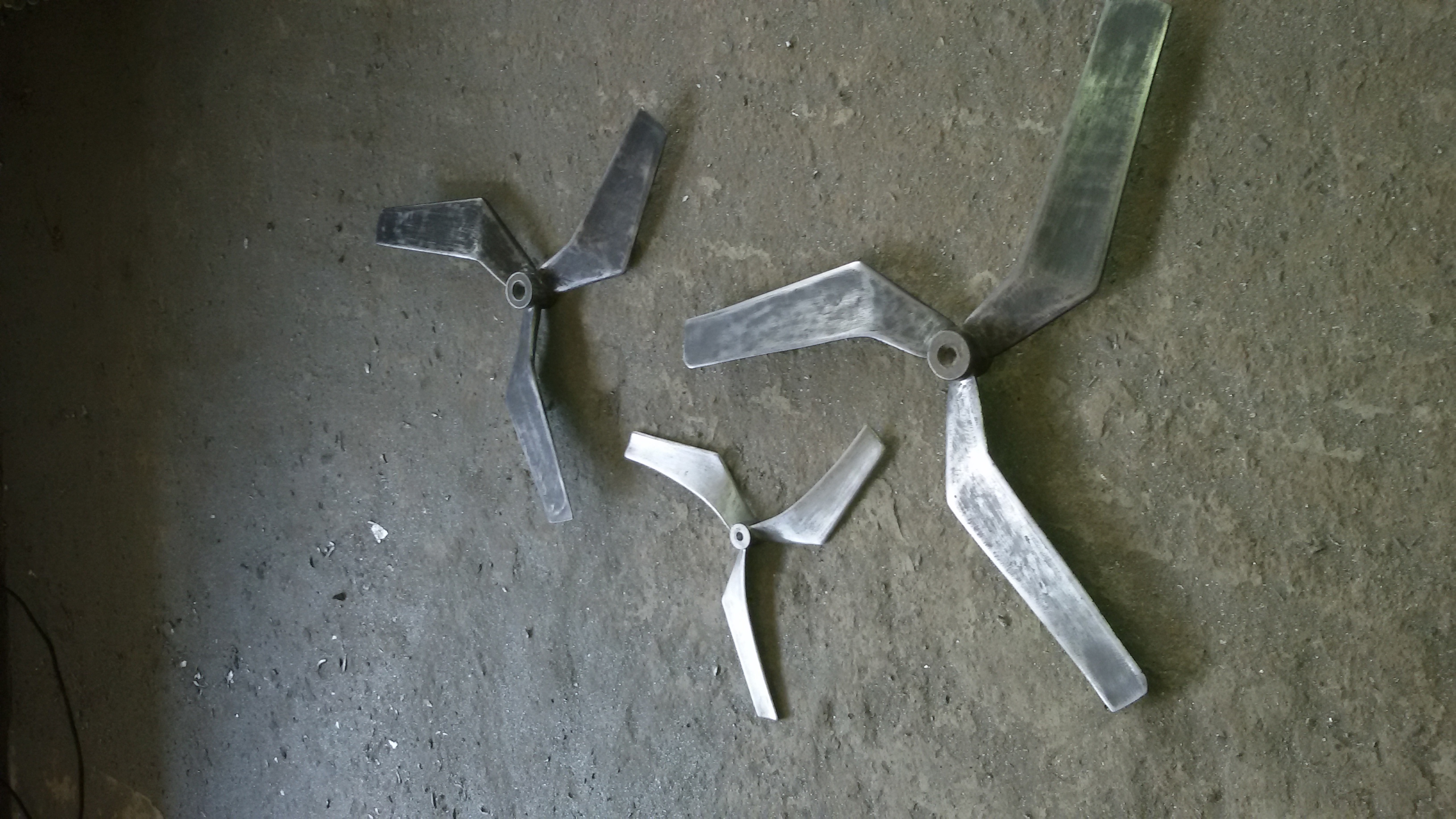

We are supply of various type of Air-Circulator Blade i.e. 18" to 30".
Blades are made by Aluminum Cast Allay with Machining, Balancing and Painting complete.
Fan Description
|
|
|||||
Model
|
Sweep |
RPM
|
CFM
|
|||
Inch |
Mm |
Wings |
||||
Minor |
18 |
450 |
4 |
1400 |
5500 |
|
Major |
24 |
600 |
2 |
1400 |
9,000 |
|
Shastick |
24 |
600 |
3 |
1400 |
10,000 |
|
Industrial |
24 |
600 |
4 |
1400 |
12,000 |
|
Heavy Industrial | 30 |
762 |
4 |
1400 |
16,000 |
|

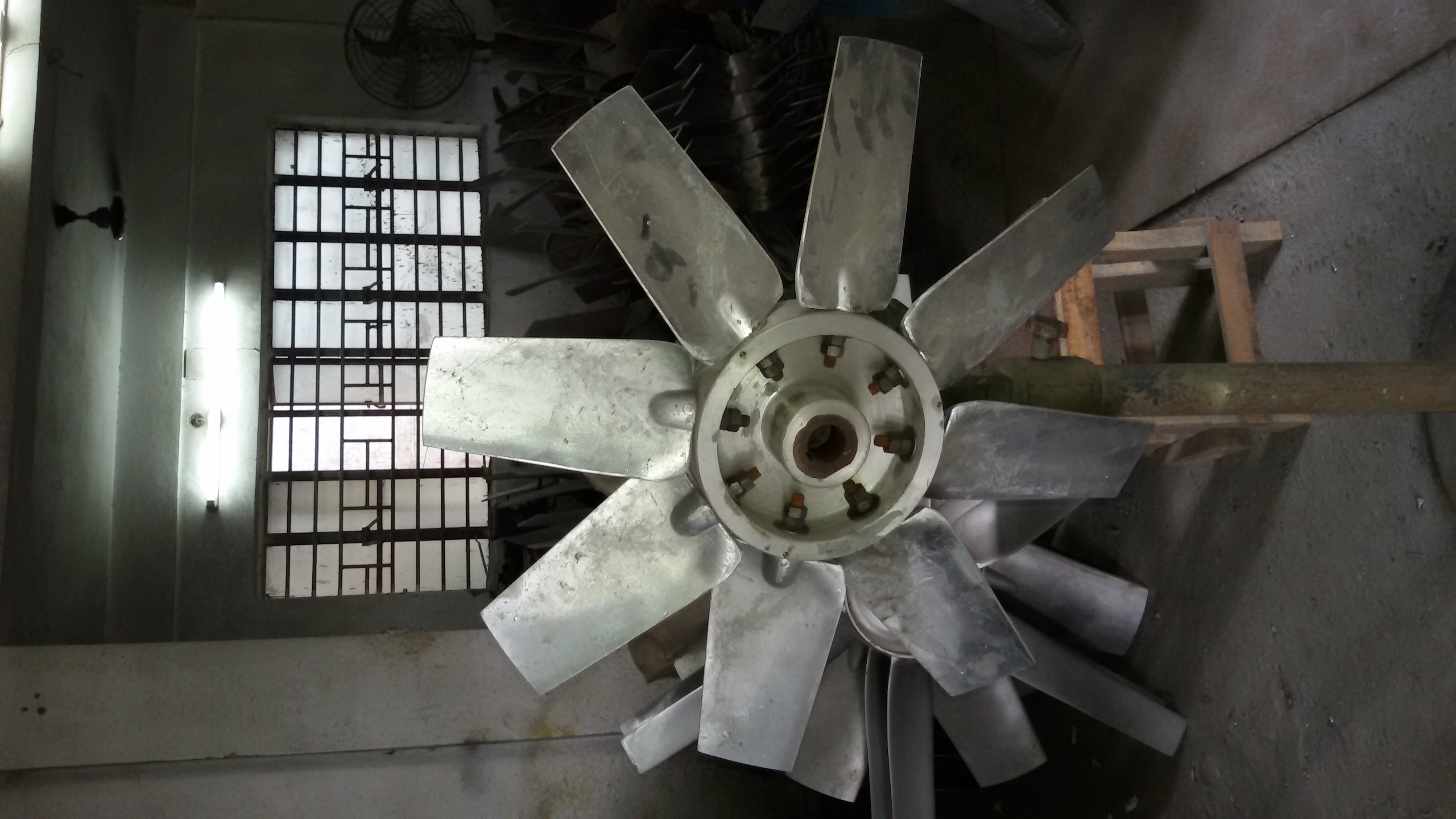

We are supply of deferent type power and air Adjustable piece of Axial Flow Impeller i.e 15"to 56" as per your specification. Impellers are made by Aluminum Cast Allay with Machining, Balancing and Painting complete
Impeller Dia (mm)
|
MotorRating KW
|
Rated Speed (RPM) |
Free Air Delivery at F.I. |
380
|
0.75
|
2900
|
5300
|
482
|
0.75
|
1440 |
7000
|
482
|
1.50
|
1440
|
9500
|
482
|
2.20
|
2900
|
11000
|
482
|
3.70
|
2900
|
14500
|
610
|
0.75
|
1440
|
10500
|
610
|
1.50
|
1440
|
14500
|
610
|
2.20
|
1440
|
16000
|
610
|
5.50
|
2900
|
18000
|
760
|
1.50
|
960
|
19500 |
760 |
1.50 |
1440 |
15000 |
760 |
2.20 |
1440 |
20000 |
760 |
3.70 |
1440 |
24000 |
914 |
1.50 |
750 |
22100 |
914 |
2.20 |
750 |
24000 |
914 |
2.20 |
960 |
25000 |
914 |
3.70 |
960 |
32000 |
914 |
5.50 |
960 |
40000 |
914 |
7.50 |
1440 |
38500 |
1220 |
5.50 |
750 |
60000 |
1220 |
7.50 |
750 |
68000 |
1220 |
5.50 |
960 |
60000 |
1220 |
7.50 |
960 |
75000 |
We are supply of deferent type power and air Adjustable piece of Axial Flow Impeller i.e 15"to 56" as per your specification. Impellers are made by Aluminum Cast Allay with Machining, Balancing and Painting complete
Impeller Dia (mm)
|
MotorRating KW
|
Rated Speed (RPM) |
Free Air Delivery at F.I. |
380
|
0.75
|
2900
|
5300
|
482
|
0.75
|
1440 |
7000
|
482
|
1.50
|
1440
|
9500
|
482
|
2.20
|
2900
|
11000
|
482
|
3.70
|
2900
|
14500
|
610
|
0.75
|
1440
|
10500
|
610
|
1.50
|
1440
|
14500
|
610
|
2.20
|
1440
|
16000
|
610
|
5.50
|
2900
|
18000
|
760
|
1.50
|
960
|
19500 |
760 |
1.50 |
1440 |
15000 |
760 |
2.20 |
1440 |
20000 |
760 |
3.70 |
1440 |
24000 |
914 |
1.50 |
750 |
22100 |
914 |
2.20 |
750 |
24000 |
914 |
2.20 |
960 |
25000 |
914 |
3.70 |
960 |
32000 |
914 |
5.50 |
960 |
40000 |
914 |
7.50 |
1440 |
38500 |
1220 |
5.50 |
750 |
60000 |
1220 |
7.50 |
750 |
68000 |
1220 |
5.50 |
960 |
60000 |
1220 |
7.50 |
960 |
75000 |
Cavity Dia Casting
Axil flow fan
Impeller from 15" to 56" Dia
Axil flow fan
Impeller from 15" to 56" Dia

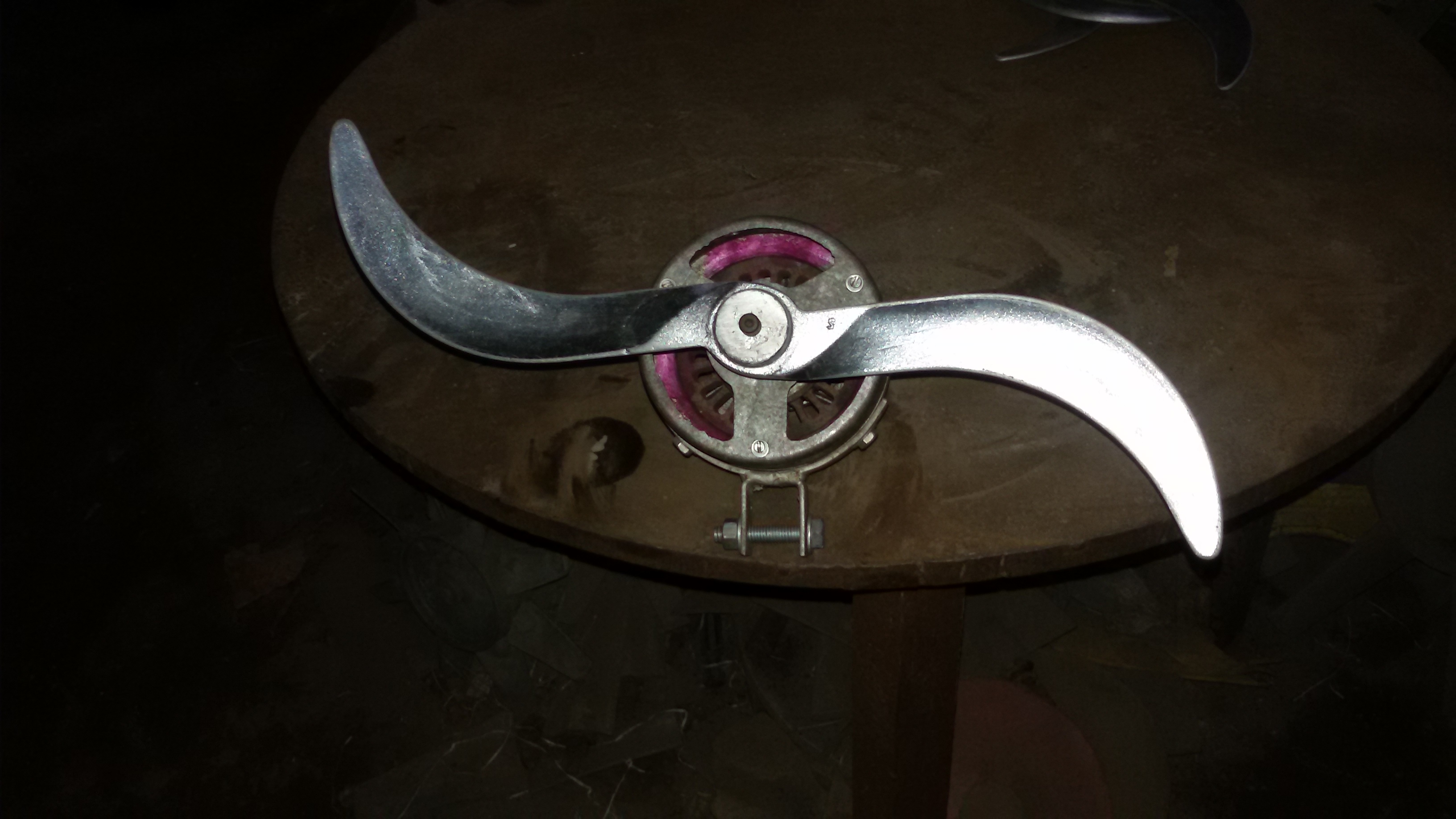

FARATA - 18inch. - 2inch. BLADE
Hi speed R.P.M-2300
MFG. with cravity Diacast
Hi speed R.P.M-2300
MFG. with cravity Diacast
